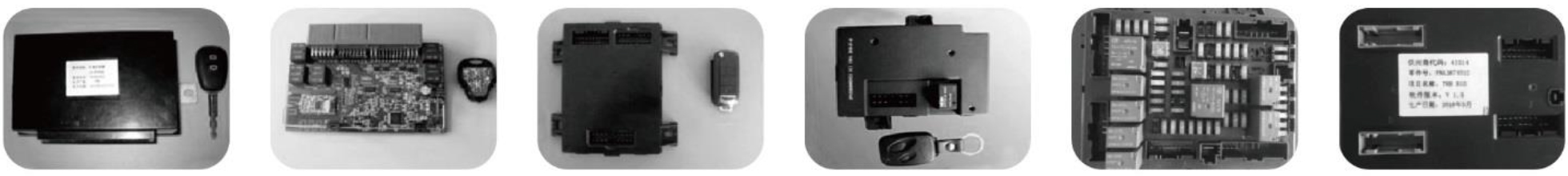

BCM SMART FUSE BOXFINISHED TEST EOUIPMENT
Date:2025/3/17 16:26:33 Hits:43
The body controller (BCM) is an intelligent body electrical management unit, which is mainly used for the intelligent control of body electrical appliances.lt also has the functions of electrical output protection,fault diagnosis, intelligent power saving，and bus communication.
Features
Basic functions
- Remote control central door lock control
- Electric doors and windows control
- Turn signal and alarm light control
- Defrost delay control
- Front and rear wiper control
- Front and rearwashing control
- Front and rearfog lamp control
- Headlight control
- Ceilinglight delayfunction
- CAN/LIN communication
- CAN/LIN diagnosis
Extended functions
- Skylight control
- Rearview mirror heating
- Rearview mirror adiustment fold
- Tire pressure monitoring
- Reversing radar control
- Automatic wiper control
- Window lift anti pinch control
- Engine anti theft
Schematic Diagram Of Fixture Use Process

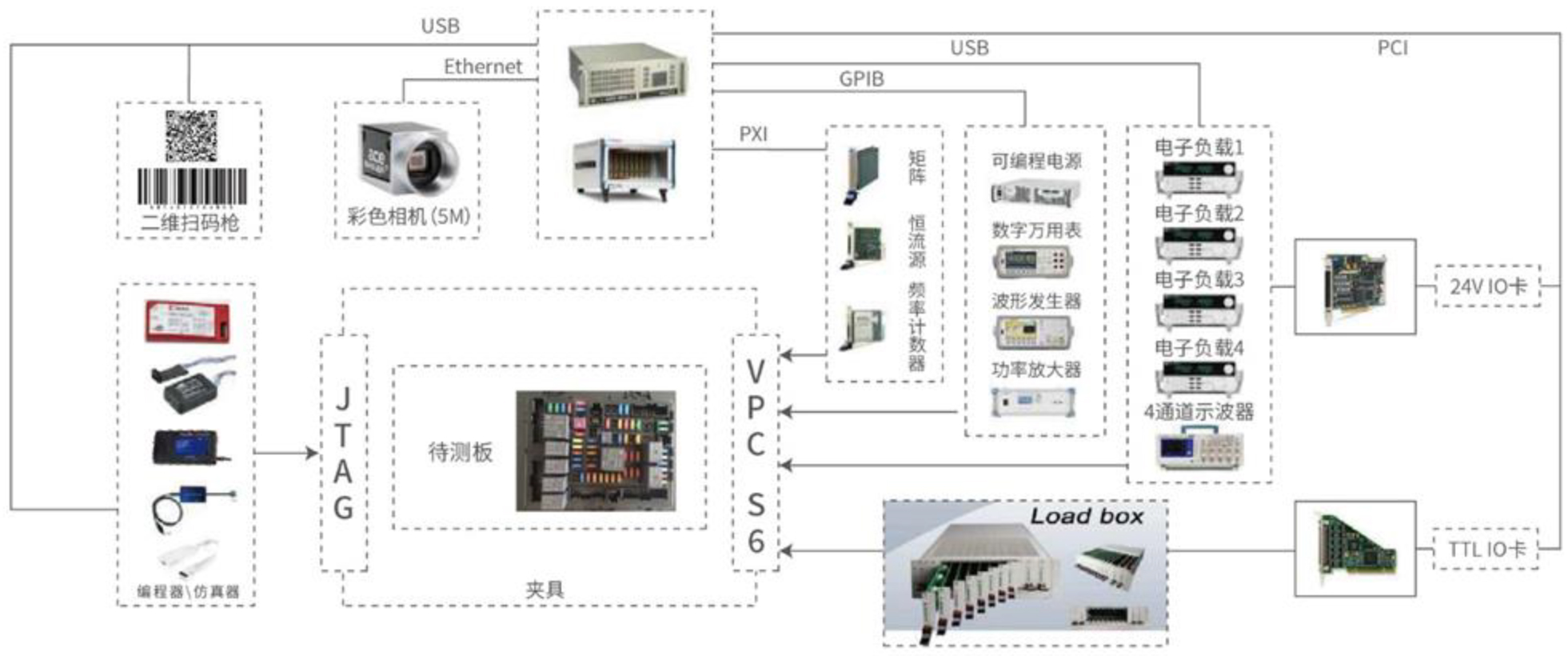

Diagram of test system
Test software main interface
BCM testing main interface.
Testing software - BMS testing sequence interface

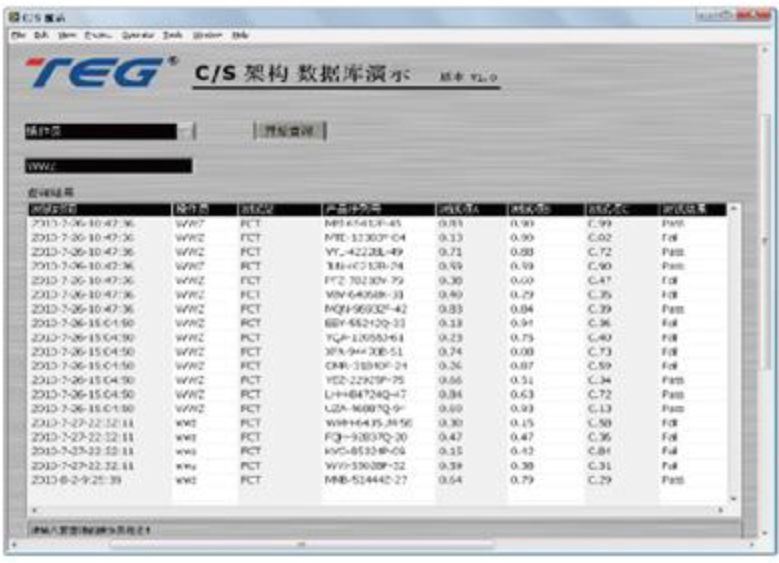

Query and analyze database related information through client applications.
